Art Shop Web Application Report

Introduction

The Islington Art Shop Web Application is an electronic system to assist in the running of Islington Art Shop that deals mostly with sales of artworks and art supplies. It mimics e-commerce by providing an interface of purchasing artwork and ordering for numerous pieces with no DB connections. The customers’ data, sales of products and service, and orders of products in large quantities can be effectively managed in the system based on the module capacity distinguishing standard customers and staff. This is a learning sample for learning newly developed ASP.NET Web technology and for practicing basic concepts of Web development as well as Programming techniques.

Implementation

The focal conception of the utilized application programming interfaces is based on the .NET Framework utilizing ASP.NET. At the architectural level the MVC has been incorporated to keep simplicity and fit into standard ASP.NET Web Form architecture (Price, 2020). Such features could be achieved by using the web forms, session-based role management and handling of forms.

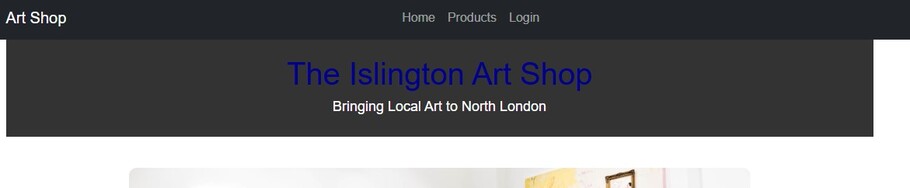

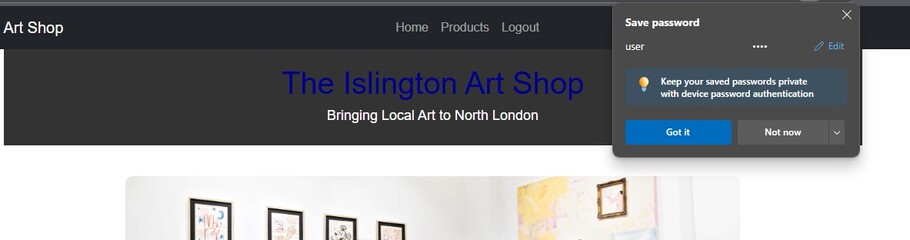

Figure 1: Session Management

(Source: Made by self in Visual Studio Community 2022)

Limited access to the features that only authorize the users having staff role to access the bulk order and mailing list features.

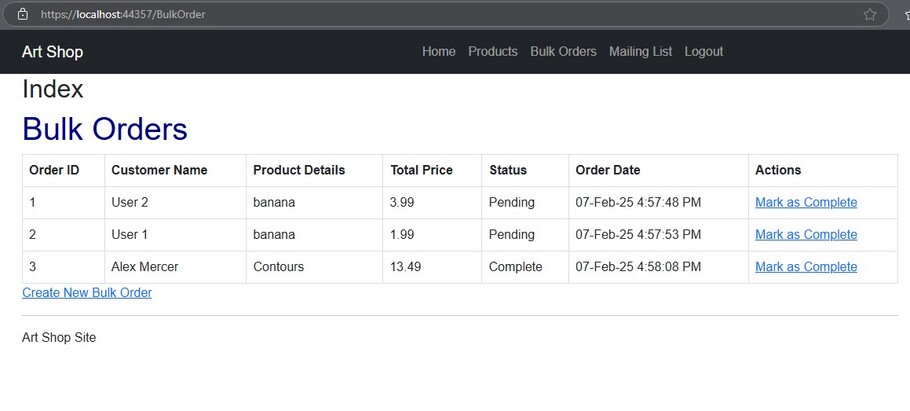

Figure 2: Server-Side Form Handling

(Source: Made by self in Visual Studio Community 2022)

Employed HTML’s form elements and form action to capture and process large orders and subscription orders while updating product and cost information.

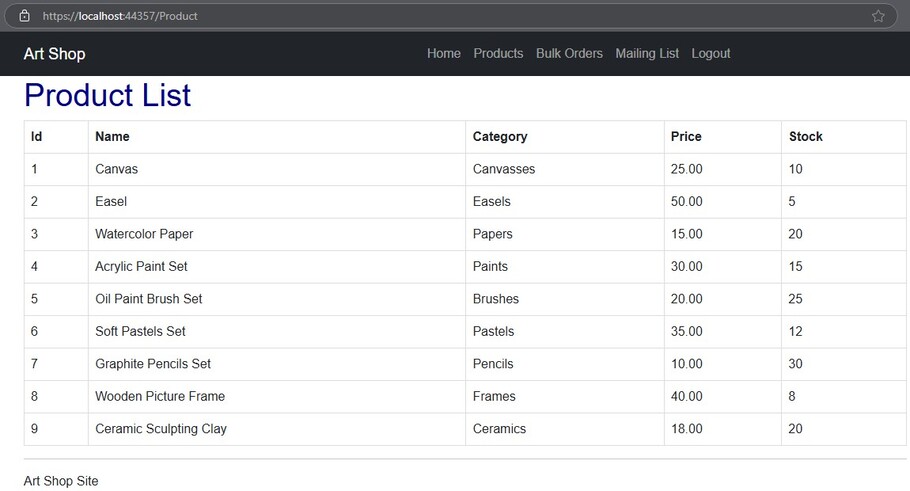

Figure 3: Data representation

(Source: Made by self in Visual Studio Community 2022)

Effective format of the dynamic pages for product listing and bulk orders using backend expertise.

Figure 4: Navigation Bar Integration

(Source: Made by self in Visual Studio Community 2022)

Implemented a navigation bar which changes dynamically depending on the role of the user logged in on the particular session.

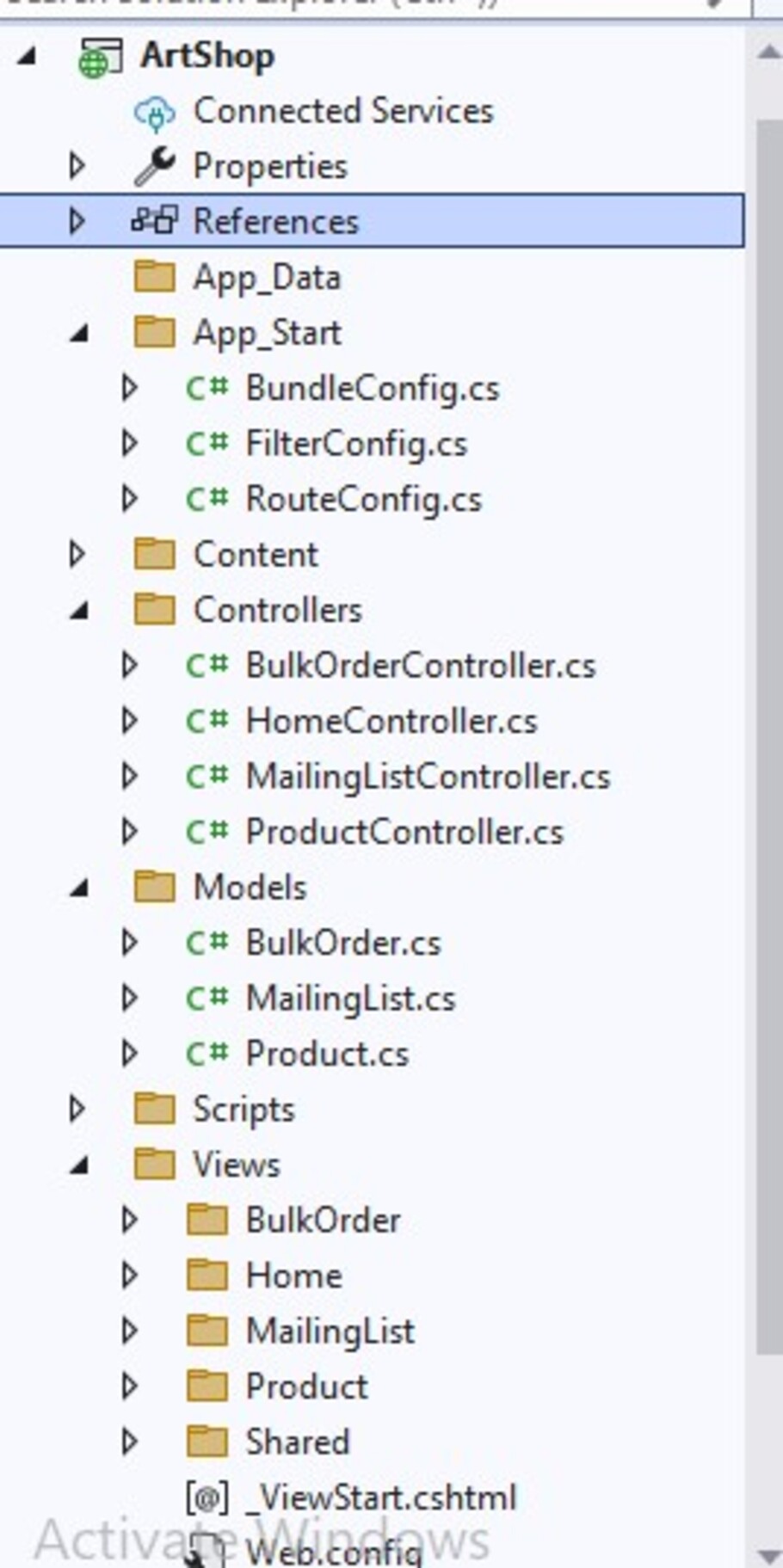

Figure 5: MVC Approach

(Source: Made by self in Visual Studio Community 2022)

Its design paid much attention to separating logic and structuring the data flow in order to make its navigation and interaction as smooth as possible (Marcotte, 2024).

Database

ERD

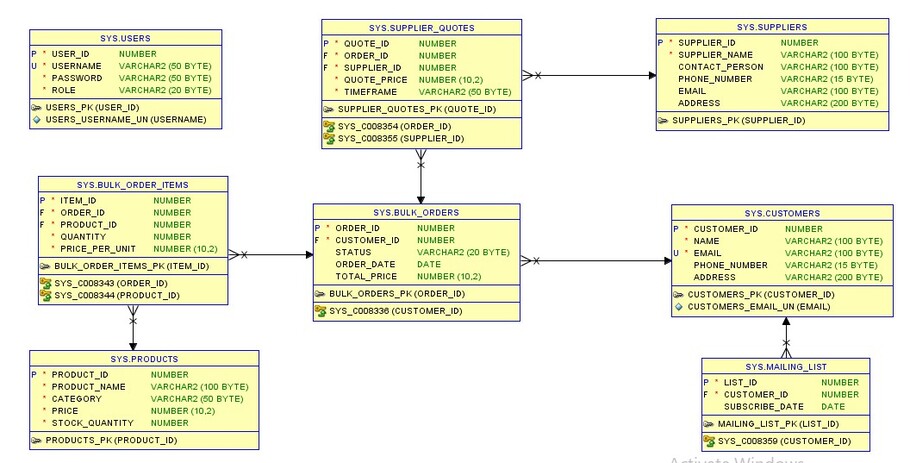

Figure 6: Entity Relationship Diagram

(Source: Made by self in Oracle SQL Developer)

Data Dictionary

• USERS Table

Column Name	Data Type	Description
USER_ID	NUMBER	Unique identifier for each user
USERNAME	VARCHAR2(50)	Unique username for the user
PASSWORD	VARCHAR2(50)	User password
ROLE	VARCHAR2(20)	User role (e.g., Staff, Customer)

• PRODUCTS Table

Column Name	Data Type	Description
PRODUCT_ID	NUMBER	Unique identifier for each product
PRODUCT_NAME	VARCHAR2(100)	Name of the product
CATEGORY	VARCHAR2(50)	Category of the product
PRICE	NUMBER(10, 2)	Price of the product
STOCK_QUANTITY	NUMBER	Available stock quantity

• CUSTOMERS Table

Column Name	Data Type	Description
CUSTOMER_ID	NUMBER	Unique identifier for each customer
NAME	VARCHAR2(100)	Full name of the customer
EMAIL	VARCHAR2(100)	Email address of the customer
PHONE_NUMBER	VARCHAR2(15)	Contact phone number
ADDRESS	VARCHAR2(200)	Address of the customer

• BULK_ORDERS Table

Column Name	Data Type	Description
ORDER_ID	NUMBER	Unique identifier for each bulk order
CUSTOMER_ID	NUMBER	Reference to the customer placing order
STATUS	VARCHAR2(20)	Status (Pending/Complete)
ORDER_DATE	DATE	Date the order was placed
TOTAL_PRICE	NUMBER(10, 2)	Total price of the order

• BULK_ORDER_ITEMS Table

Column Name	Data Type	Description
ITEM_ID	NUMBER	Unique identifier for each order item
ORDER_ID	NUMBER	Reference to the bulk order
PRODUCT_ID	NUMBER	Reference to the product
QUANTITY	NUMBER	Quantity of the product ordered
PRICE_PER_UNIT	NUMBER(10, 2)	Price per unit of the product

• SUPPLIERS Table

Column Name	Data Type	Description
SUPPLIER_ID	NUMBER	Unique identifier for each supplier
SUPPLIER_NAME	VARCHAR2(100)	Name of the supplier
CONTACT_PERSON	VARCHAR2(100)	Name of the contact person
PHONE_NUMBER	VARCHAR2(15)	Contact phone number
EMAIL	VARCHAR2(100)	Contact email
ADDRESS	VARCHAR2(200)	Supplier address

• SUPPLIER_QUOTES Table

Column Name	Data Type	Description
QUOTE_ID	NUMBER	Unique identifier for each quote
ORDER_ID	NUMsBER	Reference to the bulk order
SUPPLIER_ID	NUMBER	Reference to the supplier
QUOTE_PRICE	NUMBER(10, 2)	Quoted price from the supplier
TIMEFRAME	VARCHAR2(50)	Delivery timeframe from the supplier

• MAILING_LIST Table

Column Name	Data Type	Description
LIST_ID	NUMBER	Unique identifier for each subscription
CUSTOMER_ID	NUMBER	Reference to the customer
SUBSCRIBE_DATE	DATE	Date of subscription

Discussion

The successful passing of all the functional requirements pertinent to the Art Shop’s operation is the evidence that the software is effective. For example, they included session-based validation as a way of improving access to pages by restricting the access by role. Extended use of the server-side form handling was beneficial for processing of the number of orders altogether and for the mailing list. This aspect was not tested because the actual database connections were not used; rather, it was mimicked in terms of internal business logic as well as the flow of different pages involved in the application. In this particular project, I was able to learn various basic aspects of web development in ASP.net, and also the need to code properly so as to achieve better structure and maintainability of codes.

Conclusion

The Art Shop Web Application can effectively explain the basic principles of ASP.NET since it provides an e-business environment without using a database. Achieving the project, one identifies key basics such as the management of sessions, server-side processing of forms, and even structuring of the web pages. I found this work enlightening about web development of the web application and provided the basis for the next improvements, and database inclusion for a complete e-commerce site.

"Developing an ASP.NET web application like the Islington Art Shop requires understanding complex concepts such as MVC architecture, session management, and server-side processing. For students and professionals, online assignment help services can provide expert guidance, offering structured solutions, troubleshooting support, and coding best practices. Leveraging such support ensures accurate, high-quality reports while enhancing practical understanding of web development concepts, saving time, and boosting confidence in applying ASP.NET techniques effectively."

Reference List

‌‌Websites

‌W3schools.com. (2016). W3Schools.com. [online] Available at: https://www.w3schools.com/asp/default.ASP [Accessed 7 Feb. 2025].

www.javatpoint.com. (2025). ASP.NET Tutorial (50+). [online] Available at: https://www.javatpoint.com/asp-net-tutorial [Accessed 7 Feb. 2025].

Journals

Lock, A., 2023. ASP. NET core in Action. Simon and Schuster.

Marcotte, C.H., 2024. Architecting ASP. NET Core Applications: An atypical design patterns guide for. NET 8, C# 12, and beyond. Packt Publishing Ltd.

Price, M.J., 2020. C# 9 and. NET 5–Modern Cross-Platform Development: Build intelligent apps, websites, and services with Blazor, ASP. NET Core, and Entity Framework Core using Visual Studio Code. Packt Publishing Ltd.

Price, M.J., 2021. C# 10 and. NET 6–Modern Cross-Platform Development: Build apps, websites, and services with ASP. NET Core 6, Blazor, and EF Core 6 using Visual Studio 2022 and Visual Studio Code. Packt Publishing Ltd.
