Biomass Gasification for Sustainable Power Generation - Assignment Sample

Biomass Gasification For Sustainable Power Generation: Memorandum Of Understanding

1. Process Flow Diagram

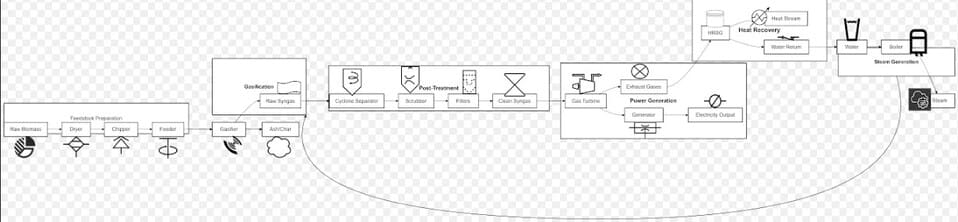

Figure 1: The Process Flow Diagram

(Source: Self-Created in Draw.io)

2. Description of Process

Description of the process well

The division of the case in the steps to build the biomass gasification plant is quite coherent and adequate to create a proper big picture of how the system is developed and works. The paper starts with a clear definition of biomass gasification and places it in the bigger picture of converting carbon-bearing material into useful gaseous products such as carbon monoxide, hydrogen, and gaseous hydrocarbons (Narnaware, and Panwar, 2022). The Refuse-Derived Fuel characterization as an efficient feedstock makes its digestion process align with environmental and energy considerations. Moreover, a focus on RDF underlines a highly justified approach concerning the installation of waste-to-energy solutions and pinpoints a desired decrease in the volume of utilized landfill waste and emissions.

The block flow diagram and the details of the pre-treatment process, drying, pyrolysis, and gasification are presented in a sequential manner. Moreover, moisture removal during drying permits a smooth operation of the succeeding stages, while pyrolysis is described in detail with special reference to its reactions depending on the temperature, as well as the manner in which it produces solids, liquids, and gases. Such an approach clearly implies sound engineering attention to detail (Patuzzi et al. 2021). The choice of a Circulating Fluidized Bed gasifier is justified effectively stating the benefits of flow rates, uniform temperature distribution, and crack. Choosing a system that is practical and economical while being compatible with a wide array of applications was good engineering practice. The use of cracking as necessary to achieve high syngas quality necessary for operation with internal combustion engines was more appealing on an engineering note (Xu, and Zhang, 2024). Analyzing chemical reaction equations increases the technical informativeness of the given material, as it gives a quantitative point of view on the occurring process. The process descriptions are not well-integrated; each is described independently. Despite minor discussion on some sustainable features as well as calling out concepts like CCS and CHP, how pre-treatment influences the efficiency of gasification or how syngas conditioning fits with the intended end-use applications are not clearly explained. It enriches the discussion by explaining their operational roles, energy recovery potential, and contribution to emission reduction.

Biomass gasification is another process that is used in the production of useful gases such as CO, and H2 from biomass feedstock that is rich in carbon. Pre-treatment phase involves the creation of a dry base which creates a polished surface that enhances both pyrolysis and gasification. Under pyrolysis, biomass undergoes thermal degradation in which it forms solids, liquids, and gases. Post-gasification is in a Circulating Fluidized Bed gasifier selected due to smooth and uniform temperature gradient, and desirable syngas quality. Energy generation is taken seriously during the process of gasification; the chemical reactions involved must be checked. The process also included integrated steps of filtration and syngas conditioning with respect to the sustainability goals. There is additional data that they could fine-tune in terms of micron-level intricacies such as an effect on particulate attenuation and energy reclamation of the advanced filtration and closed-loop systems. Expanding those features within the system context would not only amplify the environmental argumentation but also improve the engineering continuity of the descriptions of the process (Medved et al. 2021). If these elements are connected more dynamically, it would be possible to see the big picture of the biomass gasification system and make a greater impression on viewers.

Opinions about the Information

The applicability of the presentation highlights the characteristics of the feedstock, main reactions in the gasification process, selection criteria of the gasifier, syngas treatment as well as essential safety issues. These elements constitute the foundations of a complex system of gasification and prove basic knowledge of the process. A detailed and well-explained technical explanation is provided and figures as well as equations make it easier to grasp the methodology of the system. In this regard, there are critical shortcomings that hinder its comprehensiveness and reduce its function to a less than adequate design prospect.

Feedstock composition

There is relatively little discourse in the analyzed articles about feedstock composition. The presentation discusses RDF as an efficient and environmentally friendly feedstock for modern thermal plants, however, the amount of information provided on RDF characteristics is insufficient to study its chemical and physical properties (Ribó et al. 2021). Parameters that include the calorific value, the moisture content, and the organic or inorganic material comprising the fuel are not defined. These factors have a direct impact on the operation of the gasification plant as well as play a huge role in the modification of the plant design to maximize efficiency. Without these details, we can’t get definite ideas about how feasible or adaptable the system will be.

Gas Cleaning and Conditioning

As with the earlier section on gas cleaning and conditioning, each of these cannot be delved into in enough detail. Though there are notes on the cyclone and the gas scrubber, details about how these work and their efficiencies cannot be found. It remains unclear exactly how the gas cleaner is able to strip the impurities such as sulfur, or how it may affect the quality of the syngas. These details become critical in determining the readiness of syngas for downstream use, for instance in combustion engines, and in ascertaining if the system complied with prevailing environmental and operational requirements.

Syngas Application

The application of syngas also demonstrated in this section is also very narrow. Though it mentions its use in internal combustion engines it fails to focus on its use in fuel cells, chemical synthesis, or in the generation of power through turbines (Quist et al. 2021). Studying these options may be effective in adding value to the system as well as expanding its potential applications and commercial appeal. It applies to the presentation because the discussion of how the syngas adapts to different industries and what kind of changes could be made to the system in order to suit specific industries would greatly complement the presentation.

Economic Analysis

Like legal analysis, economic analysis is also somewhat underdeveloped. While there is some brief mention of CAPEX and OPEX there is no extensive cost categorization into equipment, operations and maintenance, labor, or energy investments. In the absence of such a study, it is hard to quantify the project’s profitability on the grounds of costs and expenses and communicate the value added through identifying key cost drivers and outlining the measures that may be taken to cut costs and expenses, for instance using waste heat reclamation or process automation, into precise terms.

This has fulfilled the objectives stated at the beginning of the presentation in giving a fundamental comprehension of biomass gasification, though not comprehensive for practicable engineering design information in the following aspects. Other areas that would improve the content of the presentation include the Feedstock properties that have not been analyzed in detail enough. The different methods of cleaning Syngas utilization have not been given adequate coverage. Economic analysis has been done but can improve. This would also enhance the mathematical outputs’ precision and guarantee the efficiency of the system in practice.

Biomass gasification represents a cornerstone of sustainable energy, bridging waste reduction and clean power generation. Your memorandum already establishes a strong foundation, but refining feedstock analysis, syngas conditioning details, and economic evaluation could significantly elevate its technical depth and practical applicability. Comprehensive science assignment help—covering advanced gas-cleaning techniques, CAPEX/OPEX breakdowns, and multi-industry syngas utilization—can help transform this draft into a robust engineering design proposal. With expert guidance, your work can seamlessly integrate environmental benefits, operational efficiency, and economic viability to create a compelling, professional-grade submission. Would you like me to develop detailed sections or visual aids to strengthen those areas?

Reference List

Journals

• Medved, A.R., Lehner, M., Rosenfeld, D.C., Lindorfer, J. and Rechberger, K., 2021. Enrichment of Integrated Steel Plant Process Gases with Implementation of Renewable Energy: Integration of power-to-gas and biomass gasification system in steel production. Johnson Matthey Technology Review, 65(3), pp.453-465.
• Narnaware, S.L. and Panwar, N.L., 2022. Biomass gasification for climate change mitigation and policy framework in India: A review. Bioresource Technology Reports, 17, p.100892.
• Patuzzi, F., Basso, D., Vakalis, S., Antolini, D., Piazzi, S., Benedetti, V., Cordioli, E. and Baratieri, M., 2021. State-of-the-art of small-scale biomass gasification systems: An extensive and unique monitoring review. Energy, 223, p.120039.
• Quist, J., Scholten, D., Blok, K. and Setyowati, A., 2021. A combined niche transition and energy justice study of biomass gasification in Indonesia.
• Ribó-Pérez, D., Herraiz-Cañete, Á., Alfonso-Solar, D., Vargas-Salgado, C. and Gómez-Navarro, T., 2021. Modelling biomass gasifiers in hybrid renewable energy microgrids; a complete procedure for enabling gasifiers simulation in HOMER. Renewable Energy, 174, pp.501-512.
• Xu, P. and Zhang, J., 2024. Enhancing prediction of elemental composition through machine learning decision tree models for biomass gasification optimization. Chemical Product and Process Modeling, (0).
